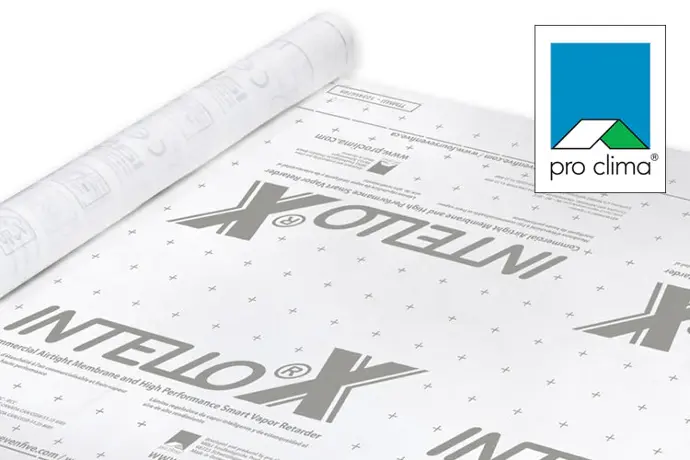

INTELLO X
Membrane inteligente intérieure frein-vapeur perspirante et hygrovariable (remplace le poly 6-mil) avec protection UV et pare-intempérie temporaire lors d'une isolation par l'extérieur ou pour les murs préfabriqués
Dimensions disponibles:
- Régulier: 1.5 x 50 m (59" x 164') - Couvre 75 m² (807 pi²)
- Double (plié): 3 x 50 m (108" x 164') - Couvre 75 m² (1614 pi²)
- Double (pleine largeur): 3 x 50 m (108" x 164') - Couvre 75 m² (1614 pi²)
Expositions aux intempéries et UV: 2 mois
per pallet (20)
| Contact for quote |
SIZE
|
Standard
1.5 m x 50 m |
1-19
| Contact for quote |
|
582,15$ |
|
1186,80$ |
|
Double-wide (folded)
3 m x 50 m |
|
Double-wide (unfolded)
3 m x 50 m |
| Contact for quote |
|
1186,80$ |
EXTERIOR/INTERIOR
Utilisation
INTELLO X is a robust exterior grade vapour variable air barrier. It offers the highest level of protection for insulated assemblies against moisture induced damages in enclosures - even for challenging constructions such as vapour closed flat roofs or highly insulated walls. It can act as a temporary WRB/roof and is ideal for commercial construction (metal studs, high rises, prefab panels) and for roof renovations from the exterior. It can be applied on the interior or, when temporarily exposed, applied on the exterior of buildings.
Avantages
- Permeability: VAPOUR VARIABLE from 0.13 to over 13 perm - best in class (factor 100)
- Complies with NBC, BC, ON code as per CAN/CGSB 51.33-M89
- Can be a temporary WRB or roof underlayment
- Protective fleeces on both sides of smart retarder protect it from damages and UV exposure, and allow for durable tape bonds on both faces of the membrane
- Suitable for all types of insulation (cellulose, mineral wool, fiberglass, cotton, sheepswool, woodfiber etc)
- Pro Clima Intelligent Airtight system (TESCON VANA tape, ROFLEX gaskets etc) allows for fast, reliable installation
Propriétés
- Material: polyethelyene copolymer protected by robust PP covers
- Waterproof, resists water column of 8’2″ (2.5m)
- UV/weather Resistance: 2 months of exposure
- With recommended installation details can be used as dense pack insulation netting
- Class A material per ASTM E84 test (0 FS, 105 SDI)
- Hydrosave value of 1.6 perms, protects enclosure from construction humidity
STANDARD
1.5 m x 50 m (59"x164') Roll Area: 75 m2 (807 SF)
DOUBLE-WIDE (FOLDED 1.5m ROLL)
3 m x 50 m (118"x164') Roll area: 150 m2 (1,614 SF)
